Pacific Northwest X-Ray Inc.

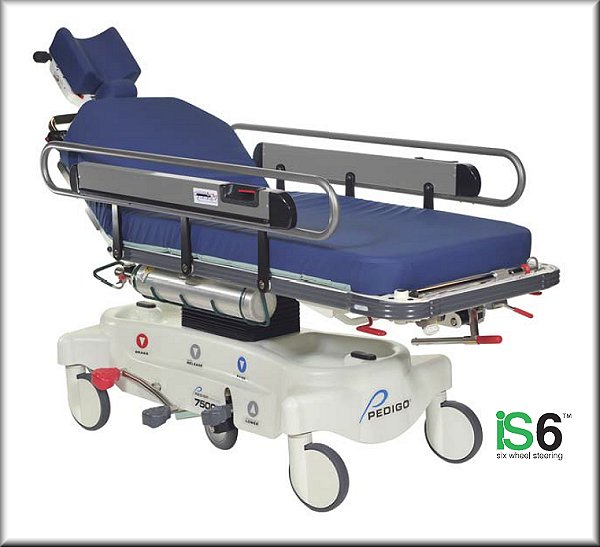

       Pedigo's 7500-NE Series Stretchers.
 Pedigo Products, Inc! The new 7500NE Stretcher is designed specifically for eye, neck and head surgery. Standard features include: center column support, retractable push handles, Quick-release O2 holder, and IS6 (instant steer six wheel steering).
  • 750 lbs. weight capacity rating
  • Stainless steel glide side rails
  • Pneumatic articulating head & neck rests
  • Pads - 4" Head & 6" Neck
  • 4" Premium mattress
  • Four IV pole receptacles
  • Four restraint strap positions
  • Ouick-Release O2 Tank Holder (US Patent 7,865,984 B2)
  • Integrated push/pull handles with latch release
  • Pneumatic adjustable fowler
  • Mechanical Level Lock
  • Hydraulic recovery knee gatch
  • Hydraulic height adjustment - dual side-mounted foot pedals
  • Instant Steer - Six Wheel Steering
  • Single column hydraulic cylinder design
  • Brake foot pedals






  • 8" easy mobility casters

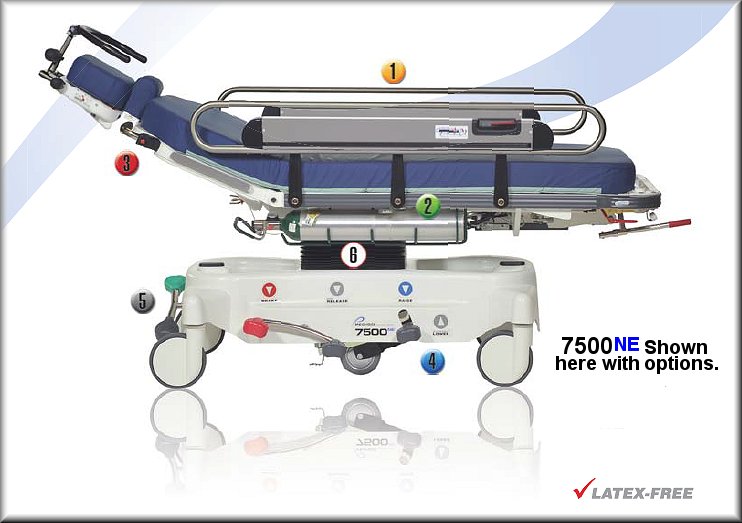

  • 1. Rail System:
    Easy to wipe clean and disinfect in the ongoing battle with germs and bacteria. This 56" stainless steel side rail is infinitely adjustable and can be locked at any height without interfering with the surgical process or patient entry or exit onto stretcher.
    2. Oxygen Tank Holder:
    Pedigo’s ergonomic Quick-Release O2 Tank Holder is side mounted and conveniently located under the litter to reduce caregiver bending. (US Patent 7,865,984 B2)
    3. Retractable Push Handles:
    Easily extended or retracted push handles by engaging the safety release lock and rotate each handle upward.
    4. Hydraulic Foot Pedals:
    Hydraulic Foot Pedals are located on each side of the stretcher within the patient care zone. Pedal function graphics are color-coded for quick and easy recognition.
    5. Instant Steer: Mounted at the head end of the stretcher, the unique foot controled feature places an additional two wheels on the floor for improved traction and six wheel steering.
    6. Center Column Support: Sturdy solid steel column with single hydraulic cylinder design uses sixteen precision ball-bearings to smoothly raise and lower the patient.




    Stock #
    Description
    Your Price
    7500-NE
    Eye Stretcher, Includes:
    Hydraulic Height Ajd.
    Pneumatic Adj. Fowler
    Recovery Knee Gatch
    Quick-Release 0² Holder
    Instant Steer 6th Wheel Steering
    Push Handles
    Pneumatic Articulating Head Red
    Neck Rest
    4" Mattress
    6" Neck Pad, 4" Head Pad
    $9,991.67


    Stock #
    Description
    Use With:
    Your Price
    2101
    IV Pole, Fixed Height
    5110, 5400, 7500, 7500-NE
    $84.40
    5984001
    IV Pole, Easiloc 7/8" Adj. / Removable
    5110, 5400, 7500, 7500-NE
    $275.00
    750702
    IV Pole Adjust
    W/Stor. Tube & Cable
    5110-NE
    $342.20
    59175001
    IV Pole
    Fold Down
    5110, 5400, 7500, 7500NE
    $412.40
    59163001
    IV Caddy
    5110, 5400, 7500
    $225.00
    750213
    0² Tank Holder
    5110, 5400, 7500, 7500NE
    $473.90
    5981001
    0² Holder
    Vertical
    5110, 5400, 7500, 7500NE
    $225.00
    5966001
    Paper Roll Holder 18"
    5110, 5400, 7500
    $333.33
    5996001
    Head/Foot Extension (no pad)
    5110, 5400, 7500, 7500NE
    $658.33
    5708001
    Head/Foot Extension 3" Pad
    5110, 5400, 7500
    $91.67
    5985001
    Push/Pull Removable Bar
    5110-N, 5400-N, 7500-N, 7500NE
    $248.33
    5704001
    Push/Pull Bar Pad
    5110-N;5400-N, 7500-N, 7500NE
    $133.33
    5716001
    Side-Rail Pads, Pair
    7500
    $291.67
    59122001
    3" Surgical Arm Board Pad
    With Pad
    5110, 5400, 7500
    $225.00
    59122001
    4" Surgical Arm Board Pad
    With Pad
    5110, 5400, 7500
    $225.00
    5903001
    Hook-n-Loop Restraint Straps, Pair
    5110, 5400, 7500, 7500NE
    $83.33
    5904001
    Buckle Restraint Straps, Pair
    5110, 5400, 7500, 7500NE
    $108.33
    59100001
    Stirrups, Set
    Includes 5994001 below
    5110, 5400, 7500, 7500NE
    $1,208.33
    5994001
    Crutch/Stirrup Adapter-Set
    5100, 5400, 7500, 7500NE
    $641.67
    750214
    Stretcher Scale
    Factory Install Only
    7500-N, 7500-W
    $2,272.00
    750216
    Exit Monitor
    5110, 5400, 7500
    $789.50
    59115001
    Monitor Tray Board
    W/Chart Holder
    5110-N, 5400-N, 7500-N, 7500NE
    $641.67
    5967001
    Chart Holder
    Requires 5985001, 5986001, 59115001 or 59116001
    5110, 5400, 7500, 7500NE
    $91.67
    750215
    Storage Bag Hook
    5110, 5400, 7500
    $70.00
