       Pedigo's 7500 Series Stretchers.

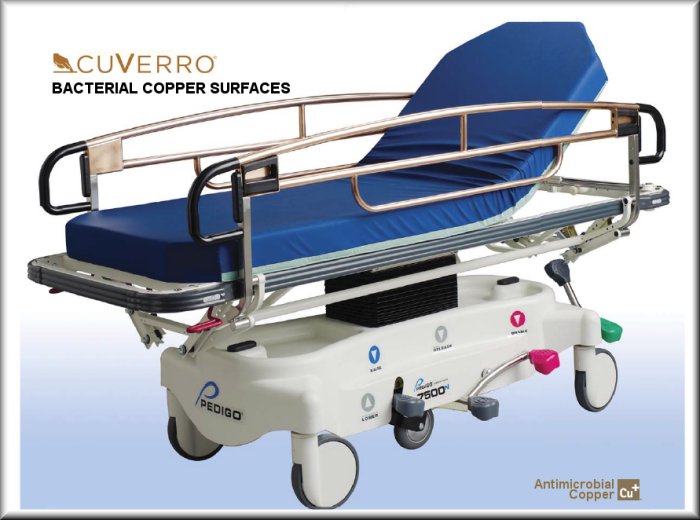

 Pedigo Products, Inc! Pedigo’s 7500/GUARDIAN Series Stretcher allows for the transfer of patients easily and comfortably with a load capacity up to 750 pounds. Superior stability, mobility, and braking capabilities make the 7500 versatile for all your department needs such as OR, ED, PACU, Patient Transportation, Radiology or Cath Lab. Choose Narrow or Wide depending on your requirements. With or without CuVerro® Bactericidal Copper Alloy Side Rails~

  • 750 lbs. weight capacity
  • Instant Steer 6 Wheel Steering (IS6) NEW !
  • Side rails - full length, dual release
  • Integrated push/pull handles
  • Center column design with precision ball bearings
  • Ouick-Release O2 Tank Holder (US Patent 7,865,984 B2)
  • Positive/negative Trendelenburg dual pneumatic assist cylinder
  • Pneumatic assist fowler (600 N 135# force)
  • Mechanical Level Lock
  • Brake & Steer activated foot pedals
  • Dual side-mounted hydraulic foot pedals
  • Four corner IV pole receptacles
  • Four restraint strap positions
  • Full PVC perimeter bumper
  • 8" easy mobility casters

  • Now available in the "GUARDIAN" with CuVerro® Bactericidal Copper Alloy Side Rails~because side rails should protect; not infect.
    As an added protection in the ongoing battle with bacteria, Pedigo's GUARDIAN 7500 Trauma Stretcher is available in CuVerro® bactericidal copper alloy. Copper is an intrinsic bactericidal element and CuVerro® is the ONLY solid touch serface metal registered by the EPA to continuously kill bacteria (listed below) that cause infections & pose a risk to human health. Lab tests show more than 99.9% of bacteria (shown below) associated with disease and infection,






    including MRSA, are killed within two hours when in contact with copper. Bacteria will continue to be killed 24 hours a day, week after week, between regular cleanings.
  • MRSA
  • Enterobacter aerogenes,
  • Pseudomonas aeruginosa,
  • Escherichia coli 01459:H7,
  • VRE
  • Staphylococcus au reus

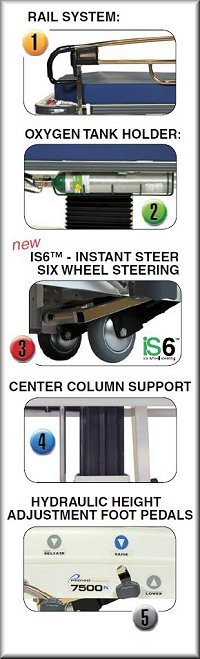

  • 1. Rail System:
    Easy to wipe clean and disinfect, full length tuck-away side rails allow for easier patient transfer by creating a zero transfer gap. Rails feature a release latch centrally located on either side of the litter top under the patient surface.
    2. Oxygen Tank Holder:
    Pedigo’s ergonomic Quick-Release O2 Tank Holder is side mounted and conveniently located under the patient surface to reduce caregiver bending. (US Patent 7,865,984 B2)
    3. IS6™ - Instant Steer Six Wheel Steering:
    The two IS6™ wheels are centered directly under the chassis for increased maneuverability and control. Dual ball bearing wheels feature a softer wheel tread for improved grip and traction.
    4. Center Column Support:
    Sturdy steel column with single hydraulic lift cylinder design uses sixteen precision ball-bearings to smoothly raise and lower the patient.
    5. Hydraulic height adjustment foot pedals:
    Hydraulic Foot Pedals are located on each side of the stretcher within the patient care zone. Color-coded pedals and function graphics are quickly and easily understood.
    6. Patient lifts:
    The 7500 Series Stretcher has 5-7/8" H of clearance between floor and cowling to easily accommodate and utilize patient lifts.




    Stock #
    Description
    Width
    Mattress?
    Your Price
    7500-N-GUARDIAN
    GUARDIAN Trauma/Transport Stretcher, includes:
    7500-N stretcher with Instant Steer 6th Wheel steering
    Quick-Release O2 Holder
    Side-Rail Upgrade- Dual Release Side-Rails
    Made with CeVurro ® bactericidal copper alloy (#750302)
    4" Premium mattress (#5851002)
    Fold down IV pole (#59175001)
    IV caddy (#59163001)
    and extended 2-year warranty
    Narrow
    Yes
    $8,791.67
    7500-N
    Trauma/Transport Stretcher
    Narrow
    No
    $7,166.67
    7500-N-SPEC
    Package, Includes:
    True Direction Steering
    Grey Bumper
    3" MATTRESS (#5828002)
    IV Pole (#2101)
    Quick Release 0² Holder, (#750213)
    & Patient Belongings Hook (#750706)
    Narrow
    Yes
    $6,833.33
    7500-W
    Trauma/Transport Stretcher
    Wide
    No
    $7,333.33
    7500-W-SPEC
    Package, Includes:
    True Direction Steering
    Grey Bumper
    3" Mattress (#5831002)
    IV Pole (#2101)
    Quick Release 0² Holder (#750213)
    & Patient Belongings Hook (#750706)
    Wide
    Yes
    $7,000.00
    5828002
    3" Black Mattress for 5110-N, 5400-N & 7500-N
    Narrow
    Only
    $315.00
    5829002
    4" Black Mattress for 5110-N, 5400-N & 7500-N
    Narrow
    Only
    $358.33
    5833002
    4" Pressure Relief Mattress for 5110-N, 5400-N & 7500-N
    Narrow
    Only
    $466.67
    5850002
    5" Premium in Blue for 5110-N, 5400-N & 7500-N
    Narrow
    Only
    $308.33
    5831002
    3" Black Mattress for 5100-W, 5400-W & 7500-W
    Wide
    Only
    $341.67
    5832002
    4" Black Mattress for 5100-W, 5400-W & 7500-W
    Wide
    Only
    $391.67
    5834002
    4" Pressure Relief Mattress for 55100-W, 5400-W & 7500-W
    Wide
    Only
    $491.67
    5856002
    5" Premium Blue for 5100-W, 5400-W & 7500-W
    Wide
    Only
    $475.00


    Stock #
    Description
    Use With:
    Your Price
    750303
    CuVerro® Antibacterial Copper Alloy
    Side Rail Upgrade~Single Release Only
    5110, 7500
    $693.00
    2101
    IV Pole, Fixed Height
    5110, 5400, 7500, 7500-NE
    $84.40
    5984001
    IV Pole, Easiloc 7/8" Adj. / Removable
    5110, 5400, 7500, 7500-NE
    $275.00
    750501
    IV Pole Adjust
    W/Stor. Tube & Cable
    5110-N, 5400-N, 7500-N
    $342.20
    750502
    IV Pole Adjust
    W/Stor. Tube & Cable
    5110-W, 5400-W, 7500-W
    $342.20
    59175001
    IV Pole
    Fold Down
    5110, 5400, 7500, 7500NE
    $412.40
    59163001
    IV Caddy
    5110, 5400, 7500
    $225.00
    750213
    0² Tank Holder
    5110, 5400, 7500, 7500NE
    $473.90
    5981001
    0² Holder
    Vertical
    5110, 5400, 7500, 7500NE
    $225.00
    5966001
    Paper Roll Holder 18"
    5110, 5400, 7500
    $333.33
    5996001
    Head/Foot Extension (no pad)
    5110, 5400, 7500, 7500NE
    $658.33
    5708001
    Head/Foot Extension 3" Pad
    5110, 5400, 7500
    $91.67
    5985001
    Push/Pull Removable Bar
    5110-N, 5400-N, 7500-N, 7500NE
    $248.33
    5986001
    Push/Pull Removable Bar
    Not for use with
    installed Patient Bag Hook
    5110-W, 5400-W, 7500-W
    $248.33
    5704001
    Push/Pull Bar Pad
    5110-N, 5400-N, 7500-N, 7500NE
    $133.33
    5705001
    Push/Pull Bar Pad
    5110-W,5400-W, 7500-W
    $133.33
    5716001
    Side-Rail Pads, Pair
    7500
    $291.67
    59122001
    3" Surgical Arm Board Pad
    With Pad
    5110, 5400, 7500
    $225.00
    59122001
    4" Surgical Arm Board Pad
    With Pad
    5110, 5400, 7500
    $225.00
    5903001
    Hook-n-Loop Restraint Straps, Pair
    5110, 5400, 7500, 7500NE
    $83.33
    5904001
    Buckle Restraint Straps, Pair
    5110, 5400, 7500, 7500NE
    $108.33
    59100001
    Stirrups, Set
    Includes 5994001 below
    5110, 5400, 7500, 7500NE
    $1,208.33
    5994001
    Crutch/Stirrup Adapter-Set
    5100, 5400, 7500, 7500NE
    $641.67
    750214
    Stretcher Scale
    Factory Install Only
    7500-N, 7500-W
    $2,272.00
    750216
    Exit Monitor
    5110, 5400, 7500
    $789.50
    59115001
    Monitor Tray Board
    W/Chart Holder
    5110-N, 5400-N, 7500-N, 7500NE
    $641.67
    59116001
    Monitor Tray Board
    W/Chart Holder
    5110-W, 5400-W, 7500-W
    $641.67
    5967001
    Chart Holder
    Requires 5985001, 5986001, 59115001 or 59116001
    5110, 5400, 7500, 7500NE
    $91.67
    750215
    Storage Bag Hook
    5110, 5400, 7500
    $70.00
