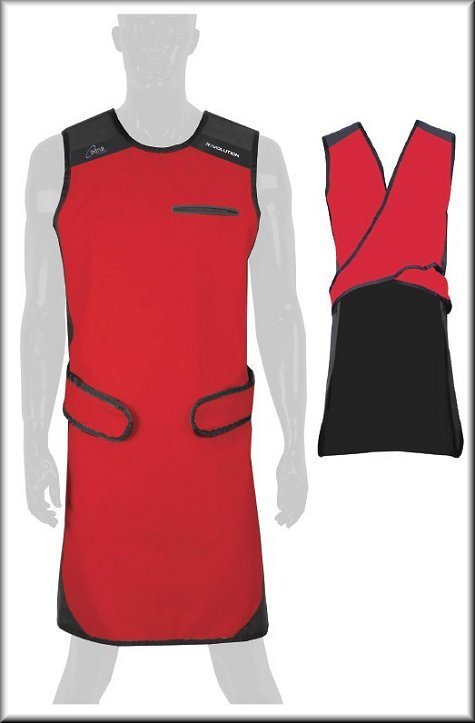

       Infab's Revolution Series Hook and Loop Frontal Apron.


Infab Corporation! INFAB'S "Revolution" series lead apparel, available in the newest inner core material for maximum scatter absorbed dose protection; KiArmor.

The Revolution "Hook n Loop" Frontal aprons have been redesigned to offer an even better fit, improved lower back support and an increased level of comfort and protection. Easy on / Easy off convenience, simply pull the fastening straps and attach the Hook-n-Loop fasteners on the front of the apron to achieve the level of lower back support desired.
  • Exclusive Revolution outer material.
  • Every Revolution Apron comes with Cool Wear Moisture-Wicking fabric.
  • Professionally designed for an exceptional fit and comfort.
  • 7 options of Two-Tone Color Blocking.
  • Flame Resistant.
  • Abrasion Resistant.
  • 100% Waterproof.
  • Includes "Cool Wear" Under Armor™ Moisture Wicking Fabric .
  • Professionally designed for an exception fit and comfort.

  • Revolution's new style Collar, a matching, form fitting, complete front/back protection Thyroid Collar.
    This collar is designed to be worn UNDERNEATH your vest for perfect fit and protection.
    (Stock #: REV-TC-KI)

    If you'd prefer a "standard" thyroid collar, (Also available in "Revolution" Fabrics)~click here:TCV Thyroid Collar



    Also available, protection for the head, secured in the back by elastic: The Revolution Thinking Cap:
    or the Thinking Cap with a "Tie Closure": (Also available in "Revolution" Fabrics)~click here:Tie Closure Thinking Cap

    View Sizing for Revolution Apparel:

    Enlarge to See Fabric choices:

    Do You Need a Carry Bag, Eyewear, Cleaner/Sanitizer Sprays, or Storage Rack to go with this apron?





    Core materials specifications.....



    Two options for core material protection, Smart Armor, or KiArmor™
  • What is Bi-Layer KiArmor?
  • KiArmor bi-layer radiation protection material is made from two distinct, homogenous layers of Lead-free materials and is certified by the National Physical Laboratory (NPL) for use by interventional radiologists, cardiologist and healthcare professionals working with radiation in hospitals worldwide. KiArmor has been developed by specialist U.K. manufacturer, Kemmetech Ltd., and Camarillo, California based medical manufacturer INFAB Corporation as a response to studies that show a 300% increase over the past decade in cardiologist's and interventionalist's exposure to ionizing radiation. The increase directly correlates with the rise in the number of cardiac imaging procedures conducted by cardiologists in modern hospitals and medical facilities. TESTING STANDARDS KiArmor is the lightest and most flexible radiation protection material ever certified to the exacting IEC 61331-1 standard, from 60 kV to 120kV; the American Society for Testing and Materials (ASTM) F2547-06 standard, and the new DIN 6857-1 ~ a standard specifically designed for Lead-Free and Lead composite materials.
    A NEW STANDARD OF RADIATION PROTECTION, KiArmor is a new, high-performance and ultra-lightweight radiation protection material, now available in a range of aprons and protective apparel from Infab Corporation.

    Lighter and more flexible than any comparable product,
    KiArmor provides 40% greater protection against absorbed dose than Lead-free or low-Lead composite materials, and 20% more protection than standard Lead-based equivalents.


    CERTIFIED TO THE HIGHEST
    GLOBAL STANDARDS
  • Tested and certified to IEC 61331-1:1994; IEC 61331-1:2013/2014 (Draft); ASTM F2547-06 and DIN 6857-1, designed specifically to test Lead-free and low-Lead composites
  • Tested and certified by the UK’s National Physical Laboratory – the world-wide calibration authority for X-ray and nuclear radiation
  • Tested and certified within of full range of kV (60kV-120kV)
  • Independently tested and verified in the full keV spectrum of scatter radiation
  • Available in Lead-free and low-Lead Bi-layer

  • ABSORBED DOSE
    X-Ray procedures expose medical personnel to a quantity of scatter radiation. ‘Absorbed dose’ describes the quantity of energy absorbed by the body and organs as a result of exposure to ionizing radiation.
    An apron’s protection levels are typically expressed as a Lead equivalency (LE), without describing absorbed dose. Aprons that express their protection levels as an attenuation percentage can be misleading, since the measurement of critical importance is the amount of radiation that gets through to the worker – the Transmission Factor.
    A 0.25mm LE Apron will allow approximately 10% of the source radiation to penetrate. At 0.5mm LE this becomes approximately 2%. The difference between these figures is five times, or 500%. In other words, choosing the higher of these two levels of protection will allow a worker to work five times longer to receive the same dose of radiation as the colleague wearing the lower protection level.

    Click to open this PDF if you'd like to learn more about this exciting new Infab product:


    Apron Type
    Size
    Gender
    Regular
    Lead

    (Stock # / Your Price)
    KI Armor™
    Low-Lead

    (Stock # / Your Price)
    KI Armor™
    Lead Free

    (Stock # / Your Price)
    Revolution Hook/Loop
    Frontal
    Small
    Male
    303M-S-RL / $295.38
    303M-S-KI-LL / $355.38
    303M-S-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    Medium
    Male
    303M-M-RL / $295.38
    303M-M-KI-LL / $355.38
    303M-M-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    Large
    Male
    303M-L-RL / $295.38
    303M-L-KI-LL / $355.38
    303M-L-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    X-Large
    Male
    303M-XL-RL / $295.38
    303M-XL-KI-LL / $355.38
    303M-XL-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    XX-Large
    Male
    303M-XXL-RL / $355.38
    303M-XXL-KI-LL / $415.38
    303M-XXL-KI-LF / $470.77
    Revolution Hook/Loop
    Frontal
    X-Small
    Female
    303F-XS-RL / $295.38
    303F-XS-KI-LL / $355.38
    303F-XS-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    Small
    Female
    303F-S-RL / $295.38
    303F-S-KI-LL / $355.38
    303F-S-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    Medium
    Female
    303F-M-RL / $295.38
    303F-M-KI-LL / $355.38
    303F-M-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    Large
    Female
    303F-L-RL / $295.38
    303F-L-KI-LL / $355.38
    303F-L-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    X-Large
    Female
    303F-XL-RL / $295.38
    303F-XL-KI-LL / $355.38
    303F-XL-KI-LF / $410.77
    Revolution Hook/Loop
    Frontal
    XX-Large
    Female
    303F-XXL-RL / $355.38
    303F-XXL-KI-LL / $415.38
    303F-XXL-KI-LF / $470.77
    Revolution Thyroid Collar
    One Size
    Fits All
    UniSex
    REV-TC-RL / $105.00
    REV-TC-KI-LL / $105.00
    REV-TC-KI-LF / $105.00
    Attach Collar to Apron
    NA
    NA
    KTC / $9.00

    Block Embroidery, 1 line
    NA
    NA
    BNME / $24.00

    Script Embroidery, 1 line
    NA
    NA
    SNME / $24.00

    Add "Cool Wear"
    Moisture Wicking Lining
    to BASE Apparel
    NA
    NA
    CW / $65.00

    Revolution BASE Hook/Loop
    Frontal Elastic Back
    SPECIFY -x- to be:
    S,M,L or XL
    Male
    B-303M-x-RL / $277.00
    B-303M-x-KI-LL / $337.00
    B-303M-x-KI-LF / $393.00
    Revolution BASE Hook/Loop
    Frontal Elastic Back
    XX-Large
    Male
    B-303M-XXL-RL / $305.00
    B-303M-XXL-KI-LL / $365.00
    B-303M-XXL-KI-LF / $420.00
    Revolution BASE Hook/Loop
    Frontal Elastic Back
    SPECIFY -x- to be:
    S,M,L or XL
    Female
    B-303F-x-RL / $277.00
    B-303F-x-KI-LL / $337.00
    B-303F-x-KI-LF / $393.00
    Revolution BASE Hook/Loop
    Frontal Elastic Back
    XX-Large
    Female
    B-303F-XXL-RL / $305.00
    B-303F-XXL-KI-LL / $365.00
    B-303F-XXL-KI-LF / $420.00
