Pacific Northwest X-Ray Inc.

Techno-Aide Protective Gonad Shields


       Techno-Aide Gonad Shields


Lead Type
Small Size
Only!

(Stock # / Your Price)
Medium Size
Only!

(Stock # / Your Price)
Large Size
Only!

(Stock # / Your Price)
Set of all three.

(Stock # / Your Price)
Regular
GNR-S / $35.00
GNR-M / $45.00
GNR-L / $55.00
GSR / $110.00
QUICK SHIP
Regular
NA / $Call
NA / $Call
NA / $Call
GSR-61 / $110.00
Light Weight
GNL-S / $40.00
GNL-M / $50.00
GNL-L / $60.00
GSL / $140.00
LMG Lead-Free
GNG-S / $45.00
GNG-M / $55.00
GNG-L / $65.00
GSG / $160.00


Techno-Aide!

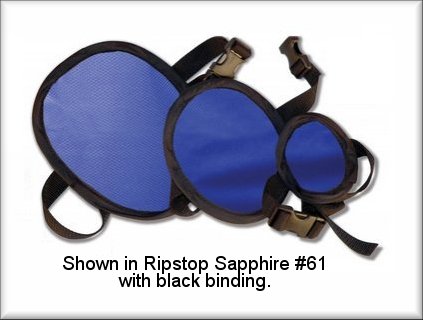

Gonadal Guard
Gonadal Shields

  • Each shield has its own attached belt with 1" buckle.
  • 0.5mm Pb equivalency protection.
  • Available in three sizes:

  • - S (4"W x 4½"L)
    - M (6"W x 7"L)
    - L (7½"W x 9"L)
  • Can purchase individually or in a set of 3.

    QUICK SHIP only available in set of 3, Standard (Regular) Lead, #61/Ripstop Sapphire with buckles.

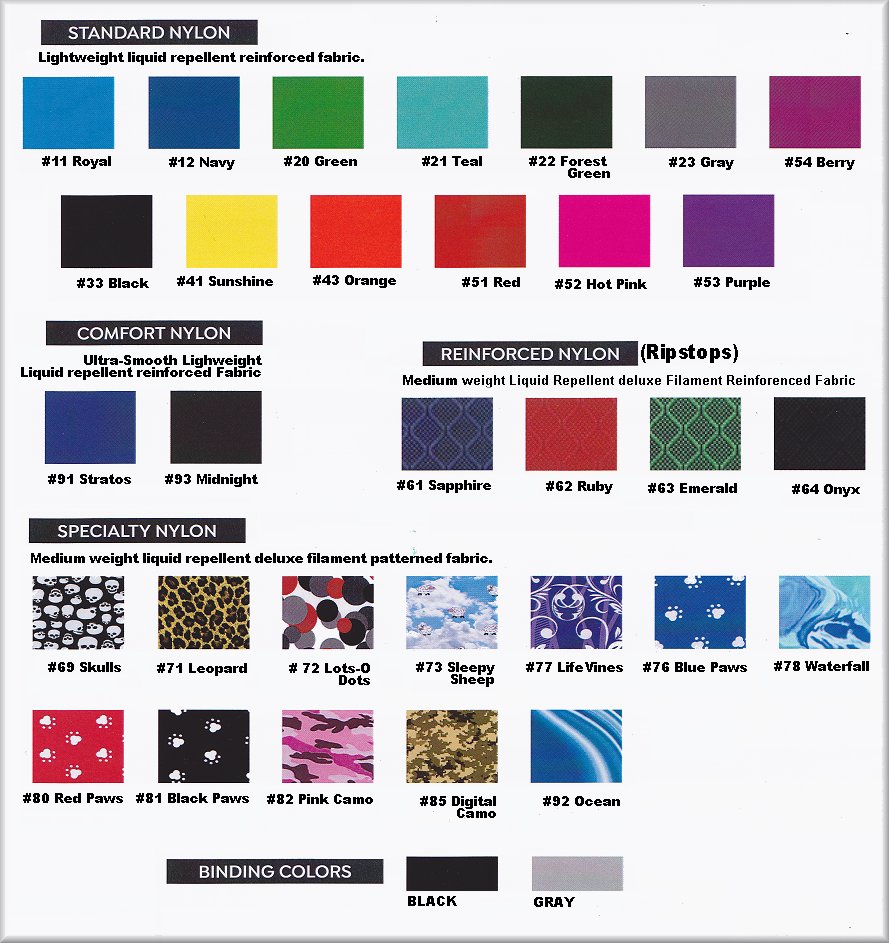

  • Click to view Techno-Aide fabric options.

    Lead-Free Protection:
  • Lean on weight (over 45% lighter than regular lead)
  • Mean on protection (protects as well as lead)
  • Green on the environment (lead-free means eco-friendly)





  •        Techno-Aide Gonadal Guard - Pediatric Gonad Shields


    Techno-Aide!


  • Specifically designed sets will accommodate neonatal up to small children.
  • Gender appropriate gonadal shielding.
  • 0.5mm Pb equivalency protection.
  • Four in male set, Royal Blue. Five in Female set, Pink.

  • NOTE: These Pediatric Gonad Shields have NO BELT.


    Stock #
    Protection
    Gender
    Your Price
    GMR4
    Regular
    Male
    $123.24
    GML4
    Light Weight
    Male
    $154.29
    GMG4
    LMG (Lead Free)
    Male
    $188.57
    GFR5
    Regular
    Female
    $154.29
    GFL5
    Light Weight
    Female
    $205.71
    GFG5
    LMG (Lead Free)
    Female
    $257.14




           Techno-Aide Pediatric Diaper Guard.


    Techno-Aide!
    NEW Diaper Guard.

  • Quick and easy.
  • Adjustable with hook and loop for a comfortable secure fit.
  • 0.5mm regular lead Pb equiv. protection in front and back.

  • Available in three sizes to fit most infants and toddlers.

    Small: Red with Black Binding
    Medium: Green with Black Binding
    Large: Sunshine Yellow with Black binding








    Stock #
    Size
    Your Price
    GBR-S
    Small in Red
    $75.00
    GBR-M
    Medium in Green
    $85.00
    GBR-L
    Large in Sunshine Yellow
    $95.00
    GBS-3
    Set of all above
    $245.00

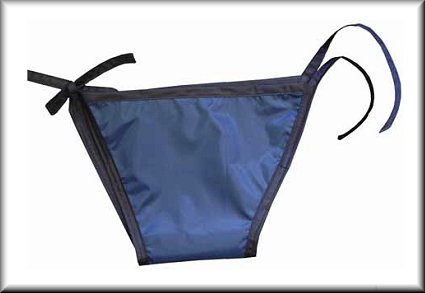

           Techno-Aide Diaper Guard for Adults and Larger Children


    Techno-Aide!
    NEW! Protection for adults and older children.

    Brachytherapy is one type of radiation therapy used to treat prostate cancer. It is also called internal radiation therapy and allows a physician to use a higher total dose of radiation to threat a smaller area and in a shorter time than is possible with external beam radiation treatment. Permanent brachytherapy also called see implantation involves placing radioactive seeds or pellets in or near a tumor and leaving them there permanently. After several months the radioactivity level of the seeds eventually diminishes to nothing. During the initial time of radioactivity, adult protective diapers can be worn under clothing to almost completely reduce the dose/exposure around the patient with radioactive brachytherapy seeds making it safe to be around other people.

    There are two types of such radioactive seeds used in LDR brachytherapy: iodine (I-125) which is the most common, and Pa-103 (a palladium isotope) may also be used.

    I-125 emits gamma at 35 keV and Pa-103 gamma at 21 keV. These monoenergetic gamma beams are approximate to the same average photon energy as about 80 kV and 60 kV x-ray beams. Therefore the 0.50 mm Pb shielding used in your adult diapers will attenuate over 96% (I-125) and over 98% (Pa-103) of such radiation.

    ( In addition gamma and beta emissions can create “bremstrahlung” x-radiation from impact, eg bone/shields etc, but again the 0.50 mm Pb shielding will similarly attenuate these at the same, or higher rates).

  • Quick and easy to put on.
  • 12" ties on each side.
  • 0.5mm regular lead Pb equiv. protection in front and back.
  • 14" wide at waist, 6.5" at crotch and 10" from waist to crotch area.

  • Click to view Techno-Aide fabric options.

    Regular lead, 0.50mm Lead Equiv.
    Weight: #1


    Stock #
    Size
    Your Price
    GDR
    Adult/Larger Child
    $105.00

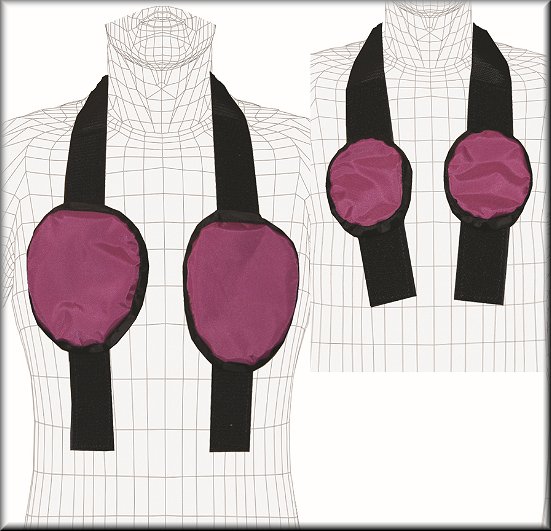

           Techno-Aide's Breast-Guard, Adult and Child Breast Protection.


    Techno-Aide!
    Breast Guard~Female Breast Protection.

  • One Strap containing two shields.
  • Allows full viewing of anatomy EXCEPT sensitive breast tissue.
  • Hook N Loop strap drapes around the neck.
  • Adjust shields anywhere along the strap.
  • 0.50mm Pb Equiv. Protection.
  • Available in all Techno-Aide's Fabric choices.

  • Choose Adult or Child Size.
    ADULT: 6" wide x 7" high
    CHILD: 4" wide x 4.5" high

    Click to view Techno-Aide fabric options.


    Stock #
    Lead Type
    Size
    Your Price
    BSRC
    Regular
    Child
    $60.00
    BSRA
    Regular
    Adult
    $60.00
    BSLC
    Lightweight
    Child
    $70.00
    BSLA
    Lightweight
    Adult
    $70.00
    BSGC
    LMG Lead-Free
    Child
    $80.00
    BSGA
    LMG Lead-Free
    Adult
    $80.00

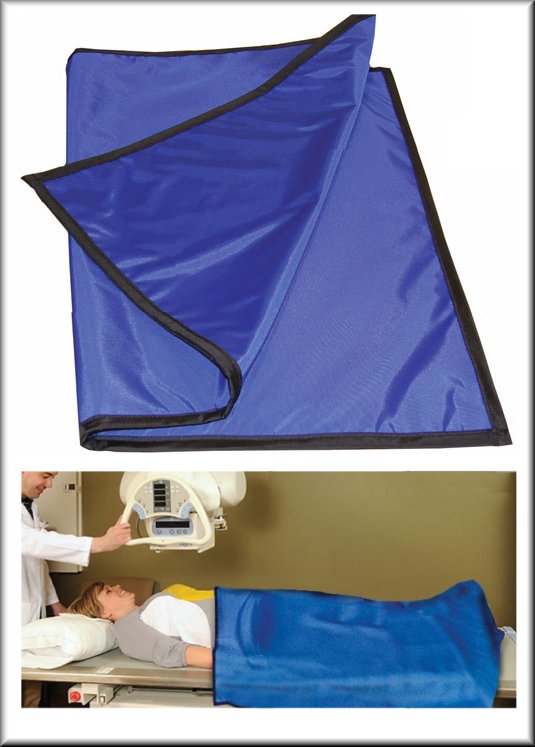

           Techno-Aide's Omni-Guard Protective Blanket.


    Techno-Aide!
    Used over a patient or equipment, protects from radiation exposure. Used underneath a patient prevents scatter radiation. All purpose covering for patients or equipment.
    0.5mm Pb equivalency protection.
    Choose any color fabric from chart.

    NOTE: Custom Sizes Available - Just e-mail or call for a quote.

    Introducing SUPER LIGHT.....LMG = LEAN, MEAN & GREEN!

    Lead-Free Protection:
  • Lean on weight (over 45% lighter than regular lead)
  • Mean on protection (protects as well as lead)
  • Green on the environment (lead-free means eco-friendly)

  • Lots of fabric choices! Click here to view:



    Lead Type
    Small (18"W x 18"L)

    (Stock # / Your Price)
    Medium (24"W x 24"L)

    (Stock # / Your Price)
    Large (24"W x 36"L)

    (Stock # / Your Price)
    X-Large (24"W x 48"L)

    (Stock # / Your Price)
    Regular
    OMR-S / $115.00
    OMR-M / $155.00
    OMR-L / $154.29
    OMR-XL / $175.71
    Light Weight
    OML-S / $160.00
    OML-M / $171.43
    OML-L / $218.57
    OML-XL / $250.29
    LMG Lead-Free
    OMG-S / $214.29
    OMG-M / $270.00
    OMG-L / $334.29
    OMG-XL / $471.43
