       JPI's Podiatric X-Ray System.

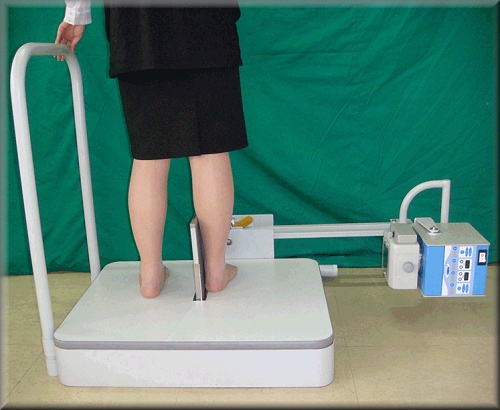

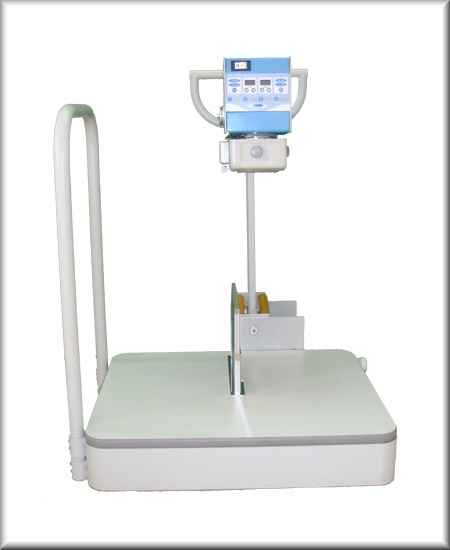

JPI Healthcare Solutions Inc! The Advance Step is a dedicated podiatry X-ray system which provides superior imaging performance for podiatry radiology. Fully weight balanced, and capable of 90 degrees of angular movement, with 8" of linear front to back movement. The Advance Step orthoposer is easy to position for any foot or ankle shot!

The powerful Advance Step x-ray generator can easily image even the largest patient and is designed for use with high detail 200 speed cassettes and film. The Advance Step generator can be plugged into any 120V outlet and does not require a dedicated line.

The platform includes a removable cassette holder for 10"x12" and 8"x10" cassettes. Cassette holders for oversized CR cassettes are available on request.

The Advance Step Podiatry System Includes:
  • Orthoposer platform.
  • 90kV / 15mA X-Ray.
  • Weight-balanced X-ray positioning arm.
  • 90 degrees vertical to horizontal.
  • 8" front to back.
  • Vertical cassette holder for 10" x 12" and 8" x 10" cassettes.
  • Half-cassette exposure blocker for 10" x 12" cassettes.

  • Features:
  • 90kV max, 15mA high frequency generator.
  • Minimize exposure time.
  • Clear images for any patient.
  • Push button controlled digital display.
  • Four programmable settings.
  • 12ft remote hand switch cord.
  • Input voltage: 110VAC

  • Stand:
  • Fixed 28" vertical and horizontal SID.
  • 5.5" platform height.
  • 29.5" platform length.
  • 23.5" platform width.
  • 29.5" hand rail height.
  • Requires a 32" x 52" space for full operation.
  • 400lbs weight support.
  • Assembles in minutes.
  • Highly durable finish.



  • Stock #
    Description
    Your Price
    9015HF-S
    Podiatry X-Ray Unit
    $8,875.00
