       Source-Ray SR-115 High Frequency, 1.5kw, Film Based Portable X-Ray System.

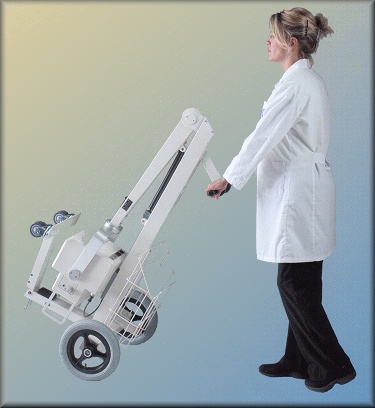

Source-Ray! The SR-115 was designed to focus on a price sensitive market that addresses cost containment goals for radiology capital equipment purchases in the portable x-ray market place. Developed for clinicians who are satisfied using lower powered x-ray units and who will continue using traditional film screen systems. The SR-115 is a user friendly system designed for high reliability, and the durability required for the Diagnostic Outreach market. Providing state of the art technology, the SR-115 produces 1.5 kW of power. It's 80 lb. net weight makes it the lightest portable x-ray system on the market today. The SR-115 weighs significantly less than other systems that produce less output. It provides clinicians invaluable maneuverability and agility around beds and other essential equipment in tight areas where space is at a premium, especially in private homes. Utilizing a small foot print, the SR-155 is an ideal system to transport in small vehicles that are economically viable for Diagnostic Outreach Services. The SR-115 can be used in clinics, nursing homes, private homes, orthopedic practices, sports medicine and correctional facilities.

Features

  • High Power Output (1.5 kW)
  • 100 kV, 15 mA, 60 mAs
  • High Frequency
  • Microprocessor Control
  • Light Weight / Very Agile
  • Cost Effective
  • Designed for Reliability
  • Durable Powder Coat Finish
  • Limited 3 Year Warranty


  • Generator: High frequency resonant inverter - 1.5 kW
    Input Voltage: 115/230 VAC, 50/60hZ
    kVp Range: 40 - 100 kVp, adjustable in 1 kV increments, closed loop regulation
    mA Range: Fixed, 15 mA, closed loop regulation
    mAs Range: 0.15 - 60

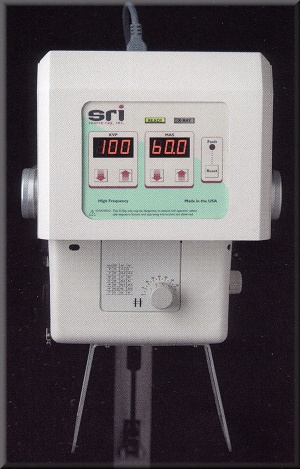

    Indicators: Digital display of kVp and mAs. X-Ray, Ready and Fault indicators.

    Exposure Switch: 2 Position - Prep / X-Ray, 15' Cable

    X-Ray Tube: Stationary Anode 100 kVp
    Filtration: 2.7 mm a1 minimum
    Target Material: Tungsten
    Anode Capacity: 20,000 HU Storage
    Focal Spot: 1.0 mm
    Target Angle: 15°

    Collimator: Advantech R72/32-ET
    Tape Measure: SID Measurement
    Inclinometer: Angle Measurement

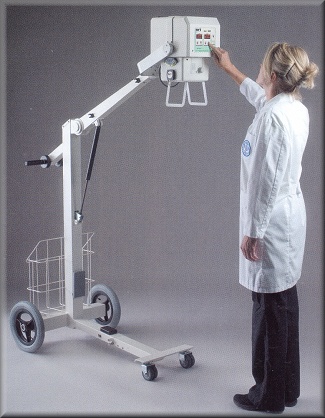

    Travel Stand: Lightweight, welded aluminum construction
    Min. F/S to Floor: 13" / 33 cm






    Max. F/S to Floor: 78" / 198 cm
    Hor. Ext. of f/S: 21" / 53 cm
    Hor. Rotation: 200°
    Tube Rotation: 270°

    Braking System: Heavy duty, manual lever, assures proper position is maintained.

    Cassette Storage: Standard Equipment, 7 Cassette Capacity 14" x 17"

    Wheels: 12" Inflatable, Heavy Duty Casters

    System Weight: 100 lbs / 45 kg

    Limited Three Year Warranty (Film Based Systems)

    Source-Ray, Inc. warrants its Model SR-115 Portable X-Ray Systems to be free of manufacturing defects, which can impair their normal operation when used within their specified ratings. Claims under this warranty must be made within 3 years after shipment from the factory. Such warranty shall not apply to defects resulting from accidents, alterations, abuse or misuse. X-Ray Tube and Collimator warranty is limited to that provided by the manufacturer. Liability under this warranty is limited to repair or replacement of defective components at the factory. Shipping costs are not included. This warranty is in lieu of any other warranty expressed or implied. Collimator bulbs, exposure and line cord assemblies, interconnect cables and tires are considered normal wear and tear and are not covered under this limited warranty.




    Stock #
    Description
    Your Price
    900033
    Portable X-Ray System, Model SR-115 - 1.5 kW 100 kV/15mA, Microprocessor Controlled, Folding Travel Stand, Advantech Collimator, Integral Cassette Storage Basket
    $13,987.50
    900035
    Optional Remote Control, (SR-115-RC), allows for remote control of the generator when mounted on customer supplied fixed wall stands where the existing controls would then be too high for proper operation.
    $856.00
    420059
    Loading Ramps, Folding Set (6")
    $613.00
    420060
    Bar, Ramp Stabilizer
    $119.00
