Pacific Northwest X-Ray Inc.

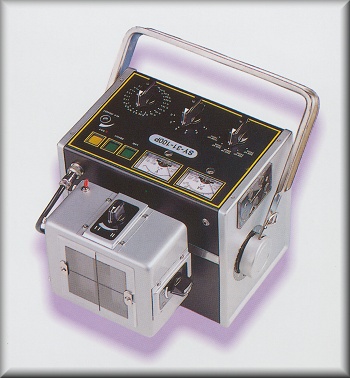

       Soyee Portable X-Ray Unit.

Stock #
Your Price

Soyee Products!
  • Ideal for Veterinary use!
  • Light weight and easy to handle.
  • Ultra durable.
  • The SY-31-100P weighs in at 40lbs.
  • Timer range from 0.03-5 seconds in 23 steps. (0.03, 0.05, 0.07, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40, 0.50, 0.60, 0.70, 0.80, 0.90, 1.00, 1.50, 2.00, 2.50, 3.00, 3.50, 4.00, 5.00 seconds)
  • Fixed Ma/kVp stations of: 100Kvp @ 10mA / 90Kvp @ 15mA / 80 Kvp @ 20mA / 70Kvp @ 25mA / 60Kvp @ 30mA
  • 120 VAC 50/60Hz (220Volt model available)
  • The three front panel control Knobs are (Left to right):
  • Ma/kVp station selection. (See above)
  • Line voltage compensation.
  • Exposure time selection, (See above)
  • Includes a metal carrying case which measures 12 5/8" High, 12 1/4" Wide, and 12 1/4" Deep. and is pictured below next to the optional mobile stand. But this case is included at no extra charge!
  • Includes collimator which makes use of a bright Quartz based lamp!
  • Warranty: 1 Year on parts except glassware, 90 Days on Labor
  • Please note: This unit is not currently FDA approved for human use in the U.S.A
  • Manufactured in Seoul, Korea
  • We've been selling these units since 1990 with great feedback from customers!

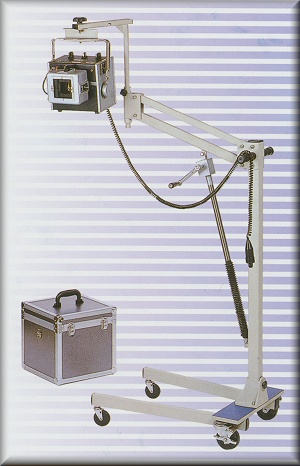

  •        Mobile Stand For Soyee Portable X-Ray Units.
    Soyee Products!
  • With two swivel wheels for convenience of movement and two locking wheels for stationary positioning and location.
  • Top=20lbs., Base=38lbs., Total=58lbs.
  • Click here to see the dimensions of this Mobile Stand.

  • Stock #
    Your Price
