Pacific Northwest X-Ray Inc.

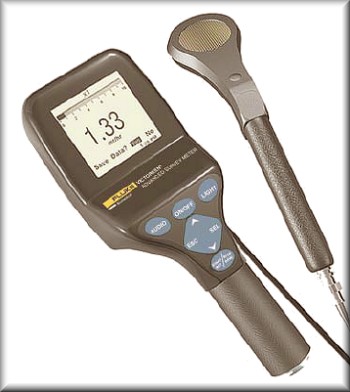

       Advanced Survey Meter.
Fluke Biomedical, Inc.
  • Advanced survey meter for multiple hospital and environmental applications
  • Cell phone-like multi-function key for easy menu navigation
  • Backlit analog/digital display
  • Integrated handle
  • Error-free visual indication
  • Auto-ranging
  • Multiple probe use
  • Full-range audio output capability
  • Survey Mode data logging feature
  • Timed Peak Hold feature
  • Built-in scaler functions
  • Barcode scanner (optional)
  • Auto Power-Down feature extends battery life

  • INTRODUCTION:
    The ASM-990 series are easy-to-use instruments that detect alpha, beta, gamma, or x-ray radiation within an operating range of 0.1 mR/hr to 1 R/hr or 1 to 5,000,000 CPM, depending on the probe selection. Visual indication of measured values, as well as selectable parameters, are displayed on the analog/digital display.

    The units are compatible with Geiger-Mueller (GM) detectors and scintillation probes operating from 500 to 1300 volts.

    APPLICATION:
    The ASM-990 series are designed to meet the high technology requirements of health physics, medical physics, and nondestructive testing applications. Radiation safety officers (RSO), nuclear medicine laboratories, diagnostic x-ray and hospital emergency room technicians, and environmental health physicists will appreciate this intelligent survey meter with its cell phone-like multi-function key for easy menu navigation.

    The units, with purchased probe, are shipped calibrated and ready-to-use.

    With the proper probe combination, this meter can be used as a general survey meter, an area monitor, a wipe test counter, and a contamination monitor.

    The unit is supplied with an MHV connector to ensure compatability with all Victoreen probes. A Model 992 is available that includes a fully calibrated internal energy compensated 1 R/hr GM detector.

    The Model 993 features a fully calibrated internal pancake detector as well as an internal energy compensated 1 R/hr GM






    detector.


    NOTE: DUE TO U.S. EXPORT CONTROL LAWS; WE ARE UNABLE TO SHIP THIS PRODUCT OUTSIDE THE UNITED STATES BECAUSE OF THE INTERNAL NATURAL URANIUM CHECK SOURCE.


    FEATURES:
  • Survey Mode feature allows user to store up to 5 separate survey sequences
  • Infrared Data (IrDA) port

  • LCD READOUT:
  • 160 x 160 graphical LCD display shows digitzed average of the bar graph value
  • Analog scale has fifty-one elements arranged in a linear bargraph. Each element represents 2% of full scale. Scale markings are 0, 2, 4, 6, 8 and 10. Scale length is 2.2 inches (5.6 cm)
  • Scale multiplier is 0.0001 to 1 million, depending on the probe selected and the units activated
  • LCD also displays selected measurement units, status icons, and real time clock

  • PUSHBUTTON CONTROLS:
  • Lightactivates a background light for a preset or indefinite amount of time
  • Start/Stop/Rst/Save saves current data; starts and stops recording of data; resets internal counter in scaler mode
  • Sel activates the menu systems; allows user to choose particular settings, etc.
  • Up/Dn arrows enables user to navigate between various menus/selections
  • Esc returns to the normal operating mode
  • Audio allows the user to turn on/off the audio indicator


  • SPECIFICATIONS FOR ASM-990 AND ASM-992
    Operating modes:
  • Rate
  • Integrate
  • Scaler (dual option): "Based On Measurement" or "Based On time"


  • Timed Peak Hold
  • Data Logging
  • Operating rate ranges (dependent on selected probe)

    Complementary units in the integrate mode with the integrated time value in seconds.
  • Accuracy:Within 10% of reading between 10% to 100% of full scale indication on any range, exclusive of typical energy dependence. Accuracy is probe dependent.
  • Detector:Accepts GM detectors and scintillation probes operating at high voltages between 500 and 1300 volts
  • Environmental
  • Temperature range: 14° to 122°F (-10° to 50°C)
    Relative humidity: 0 - 95%, non-condensing
  • Warm up time: 5 second diagnostic check.
  • Check source: Natural uranium, mounted on the case.
  • Power requirements: Two "D" cells, 150 hours operation, automatically indicates when battery is low.
  • Housing material:Proprietary polycarbonate, splash-proof case.
  • Display:Liquid crystal display, 2.2 x 2.2 in (5.6 x 5.6 cm)

    DATA LOGGING MODES:
    The ASM-990 series' Log Data feature can easily be accessed via the Setup Sub-menu.
    The unit can log/save a maximum of 500 data points in any of three separate modes (Manual and Survey modes can utilize the optional barcode scanner)
    MANUAL:Individual rate data points can be saved by pressing the Start/Stop/Rst/Save button.
    TIMED:A data point will automatically be saved at user selectable time intervals in the range of 1 to 255 seconds.
    SURVEY:Programmed sequences can be accessed via the menu system. Pressing the Start/Stop/Rst/Save button saves the current reading and displays the next survey location.
    Programming of survey sequences, as well as retrieval of logged data, is accomplished via the built-in IrDA port.




  • Label names up to 20 characters can be programmed into the unit to identify the individual survey locations.
    WEIGHT: (without probe)
    ASM990 & 992: 2.1 lb. (0.95 kg)
    ASM993: 2.4 lb. (1.09 kg)
    DIMENSIONS: 4.125" (w) X 10.91" (d) X 2.5"(h) (10.47 X 27.71 X 6.35 cm)
    Probe Connector: The unit is available with an MHV connector.
    This unit can be used with multiple probes (5 total) by selecting the appropriate probe from the main menu. All calibration data for each probe is stored in the unit's EEPROM.

    SPECIFICATIONS FOR ASM-992 AND ASM-993 INTERNAL ENERGY COMPENSATED 1 R/hr GM DETECTOR:
  • Range: 0.1 mR/hr to 1 R/hr
  • Radiation detected: Gamma above 60 keV
  • Accuracy± 10% of reading between 10% and 100% of full scale on any range, exclusive of energy dependance
  • Typical energy dependence:


  • SPECIFICATIONS FOR ASM-993 INTERNAL PANCAKE DETECTOR:
  • Radiation detected: Alpha above 3.5 MeV, beta above 35 keV and gamma above 6 keV
  • Range:Background to 80 mR/hr
  • Window:15 cm² (1.75 in Ø ) mica, 1.4 to 20.0 mg/cm²
  • Typical background: 30 CPM
  • Protective screen Stainless steel, hexagonal pattern providing 86% open area
  • Accuracy:±10% of reading between 10% and 100% of full scale on any range, exclusive of energy dependence (protective cover open)

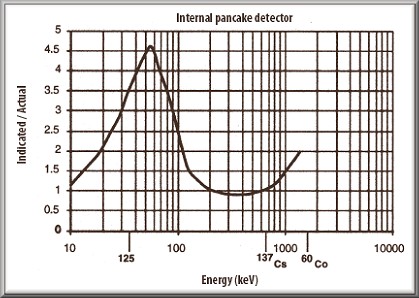

  • Typical energy dependence:


  • Efficiency:The internal pancake detector efficiency is shown above. In a report performance check, the numbers shown represent typical results obtained:


  • NOTE:The efficiency formula used to calculate the %Efficiency is: Eff.%=(CPMx100) / DPM


    Operating DOSE ranges (dependent on selected probe)
    µR/hr
    mR/hr
    R/hr
    µrem/hr
    mrem/hr
    rem/hr
    µSv/hr
    mSv/hr
    Sv/hr
    CPM
    CPS
    DPM99mTc
    DPS131I
    Bq125I
    kBq123I
    MBq201TI
    µCi67Ga
    mCi18F
    Ci57Co


    Operating RATE ranges (dependent on selected probe)
    µR
    mR
    R
    µrem
    mrem
    rem
    µSv
    mSv
    Sv
    C (counts)
    kC
    MC
    D (distintigrations)
    kD99mTc
    MC131i


    Internal Pancake Probe Efficiency
    Isotope.
    % Efficiency
    14C
    5
    99Tc
    12
    137Cs
    24
    90Sr
    59
    36CI
    26
    241Am
    8
    129I
    2
    230Th
    15
    239Pu
    12


    Stock #
    Internal Barcode
    Reader
    External BNC Connector
    (Allows the use of external
    probes shown below)
    Internal/Built-In (90-12)
    energy compensated
    1 R/hr GM detector
    Internal/Built-In (489-110D)
    Pancake detector.
    Your Price
    ASM-990-PTO
    No
    Yes
    No
    No
    $Call
    ASM-990BC-PTO
    Yes
    Yes
    No
    No
    $3,231.83
    ASM-992-PTO
    No
    Yes
    Yes
    No
    $2,584.00
    ASM-992BC-PTO
    Yes
    Yes
    Yes
    No
    $3,492.57
    ASM-993-PTO
    No
    No
    Yes
    Yes
    $3,102.20
    ASM-993BC-PTO
    Yes
    No
    Yes
    Yes
    $3,748.17


    Stock #
    Optional Accessory
    Your Price
    990-IR-USB
    USB IrDA Adapter(InfraRed)
    $451.46
    990CC
    Carrying Case
    $632.76

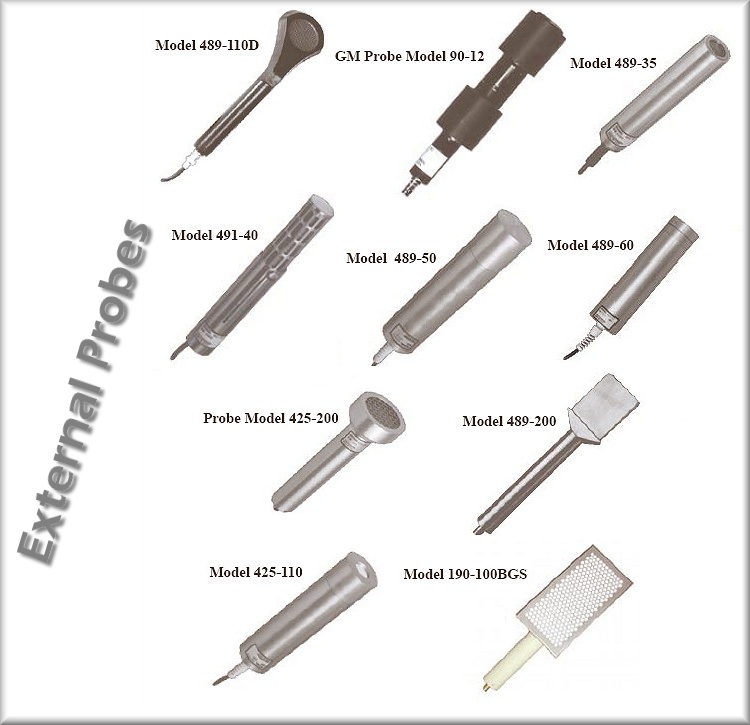

           Available Geiger-Mueller & Scintillation Probes.
    Fluke Biomedical, Inc. GM probes for qualitative radiation detection - The Geiger-Mueller (GM) detectors fulfill a wide variety of radiation measurement needs for alpha, beta, gamma and x-ray sources. Some probes are provided with a 360° shield to permit discrimination between penetrating and non-penetrating radiation.

    The GM detectors have a field-proven design to ensure dependable performance, reliability and ruggedness. Standard MHV type connectors readily allow interchange of all detector probes. The life expectancy of the counters range from 108 total counts to unlimited life depending on the type of quench gas utilized. Enhanced sensitivity to low level alpha, beta, gamma and x-ray radiation is achieved when using the unique 489-110D Pancake GM Probe.

    The following probe selection guide lists various probes and suggested applications. Applications include nuclear medicine, counter top surveys, leakage detection from diagnostic x-ray and linear accelerators, geological surveys, scrap metal yards and unknown wells.

    Scintillation probes for quantitative radiation assessment (counts/minute).
    The scintiallation detectors are optically coupled to photomultiplier tubes, which are then both magnetically shielded with mu-metal and specially shock-mounted to provide trouble-free performance. The entire detector, crystal and photomultiplier, are secured in a sturdy cylindrical aluminum housing. Where appropriate, a thin window has been utilized to provide alpha or low energy gamma response.

    Applications outlined in this guide include nuclear medicine labs, HAZMAT spills, radiation safety office surveys, industrial hygiene, industrial x-ray manufacturing, and geological surveys.




    Stock #
    Probe Type
    Typical Applications
    Alpha
    Energy
    Detected
    Beta
    Energy
    Detected
    Gamma/X-Ray
    Energy
    Detected
    Typical
    Background
    Nominal
    Sensitivity
    Wall Material
    Your Price
    489-110C
    Pancake
    Geiger-Mueller (GM)


    Metal Housing, with
    MHV connector
  • General Purpose
  • Nuclear Medicine Counter Tops
  • X-Ray Equipment Leakage
  • Geological Surveys
  • Scrap Metal Yards
  • HAZMAT
  • Above
    3.5 MeV
    Above
    35 keV
    Above
    6 keV
    30 CPM
    Shielded
    3500 CPM
    To 1mR/hr of 60Co
    Stainless Steel
    w/mica window
    $824.27
    489-110D
    Pancake
    Geiger-Mueller (GM)


    ABS Plastic Housing, with
    MHV connector
  • General Purpose
  • Nuclear Medicine Counter Tops
  • X-Ray Equipment Leakage
  • Geological Surveys
  • Scrap Metal Yards
  • HAZMAT
  • Above
    3.5 MeV
    Above
    35 keV
    Above
    6 keV
    30 CPM
    Shielded
    3500 CPM
    To 1mR/hr of 60Co
    Stainless Steel
    w/mica window
    $736.37
    489-110E
    Pancake
    Geiger-Mueller (GM)


    ABS Plastic Housing, with
    BNC connector
  • General Purpose
  • Nuclear Medicine Counter Tops
  • X-Ray Equipment Leakage
  • Geological Surveys
  • Scrap Metal Yards
  • HAZMAT
  • Above
    3.5 MeV
    Above 35
    keV
    Above
    6 keV
    30 CPM
    Shielded
    3500 CPM
    To 1mR/hr of 60Co
    Stainless Steel
    w/mica window
    $720.00
    90-12
    Energy Compensated
    Geiger-Mueller (GM)
  • Small space applications
  • Linear accelerators
  • X-Ray Tube Manufacturers
  •
    Above
    200 keV
    Above
    12 keV
    15 CPM
    Shielded
    720 CPM
    To 1mR/hr of 60Co
    Stainless Steel
    $1,355.71
    489-35
    Thin End Window
    Geiger-Mueller (GM)


    Ultra sensitive alpha, beta,
    and Gamma
    w/directional focus
  • Nuclear Medicine
  • Emergency Response
  • Above
    4 MeV
    Above
    70 keV
    Above
    6 keV
    50 CPM
    Shielded
    3900 CPM
    To 1mR/hr of 60Co
    Stainless Steel
    w/mica window
    $1,521.73
    491-40
    Geiger-Mueller (GM)

    Beta, Gamma/X-Ray with
    360° metal shield for
    Beta discrimination


    Above
    200 keV
    Above
    12 keV
    15 CPM
    Shielded
    720 CPM
    To 1mR/hr of 60Co
    Stainless Steel
    $1,510.29
    491-30
    Geiger-Mueller (GM)

    Beta, Gamma/X-Ray with
    360° metal shield for
    Beta discrimination
  • Higher sensitivity than
    491-40/493-50 but has max
    rate of 100mR/hr
  •
    Above
    200 keV
    Above
    12 keV
    20 CPM
    Shielded
    2200 CPM
    To 1mR/hr of 60Co
    Stainless Steel
    $1,046.57
    489-50
    Scintillator

    NaI (T1) Sodium
    Iodide 1x1, scintillator
    optically coupled to PMT
  • Nuclear medicine
  • Industrial hygiene
  • Industrial x-ray manufacturing
  • Geological surveys
  • Radiation safety office
  •

    Above
    60 keV
    1750 CPM
    160,000 CPM/
    mR/hr of 137Cs
    0.04 in Al,
    1 mm thick
    $1,899.97
    489-55
    Scintillator

    NaI (T1) Sodium
    Iodide 1.5x1.5, scintillator
    optically coupled to PMT
  • Nuclear medicine
  • Industrial hygiene
  • Industrial x-ray manufacturing
  • Geological surveys
  • Radiation safety office
  •

    Above
    60 keV
    5000 CPM
    350,000 CPM/
    mR/hr of 137Cs
    0.04 in Al,
    1 mm thick
    $1,846.59
    489-120
    Scintillator

    NaI (T1) Sodium
    Iodide 2x2, scintillator
    optically coupled to PMT
  • Nuclear Medicine seed finder
  •

    Above
    60 keV
    6000 CPM
    700,000 CPM/
    mR/hr of 137Cs
    0.04 in Al,
    1 mm thick
    $2,325.93
    489-60
    Scintillator

    ZnS (Ag) Sodium
    Alpha scintillator
    optically coupled to PMT
  • Alpha Detection:
    Uranium/Plutonium
  • HAZMAT
  • RSO
  • Above
    4 MeV


    20 CPM
    300,000 CPM/
    µCi of 241Am
    0.04 in Al,
    1 mm thick
    $1,849.54
    425-110
    Thin Scintillator

    NaI (T1)Thin scintillator
    optically coupled to PMT
  • Primary probe for Nuclear Medicine
  • Low Energy X-Ray manufacturing
  • Industrial hygiene
  •

    Above
    10 keV
    200 CPM
    3,000,000 CPM/
    µCi of 129l
    0.04 in Al,
    1 mm thick
    $2,192.90
    425-200
    Plastic Scintillator

    NE 102A Plastic scintillator
    Flashlight probe,
    optically copuled to PMT
  • Alpha and Beta
    counting of filter paper
  • HAZMAT
  • Nuclear medicine missing sources
  • Above
    350 keV
    Above
    14 keV

    38 CPM
    0.0012 CPM/
    DPM/ 100CM2 63Ni
    0.04 in Al,
    1 mm thick
    $2,323.10
    489-200
    Pancake Scintillator

    NaI (T1) Sodium
    Iodide 1x1, scintillator
    optically coupled to PMT
  • High sensitivity beta/gamma
    frisker for Nuclear Medicine
  • Environmental surveys
  •
    Above
    100 keV
    Above
    25 keV
    3000 CPM
    650 CPM/
    µR/hr of 137Cs
    0.04 in Al,
    1 mm thick
    $1,771.07
    190-100BGS
    100 cm2 Plastic
    Scintillator


    Beta90Sr
    efficiency 65%




    $2,476.33







    Cards We Accept!
    For order methods and policies, please click here.


    E-Mail Sales
    Telephone

    Phone Lines open...
    8am - 5pm Monday-Friday (Pacific/West Coast Time)
    Toll-Free (US): 800-827-XRAY (800-827-9729)
    Toll-Free (US): 866-PNW-XRAY (866-769-9729)
    Skype: pnwxray
    Phone: 1-503-667-3000
    Download our order form
    and then...Fax Your Order
    24 Hours a day!
    1-503-666-8855

    P.O. Box 625 * Gresham, OR  97030 * U.S.A.

    This web site is our catalog, no printed catalog is available. - Please keep checking back, changes to this site are made daily.
    Every effort is made on our part to keep all posted prices up to date, however we can not guarantee the accuracy due to notification delays by the manufacturers.
    Purchase Orders accepted only upon approval of credit - Min. $500 opening order for new open CHARGE accounts.
    All other orders (Cash, Credit Card, etc) subject only to a $30 product minimum order!



    ©1997-2017 Pacific Northwest X-Ray Inc. - Sales & Marketing Division - All Rights Reserved
