Pacific Northwest X-Ray Inc.

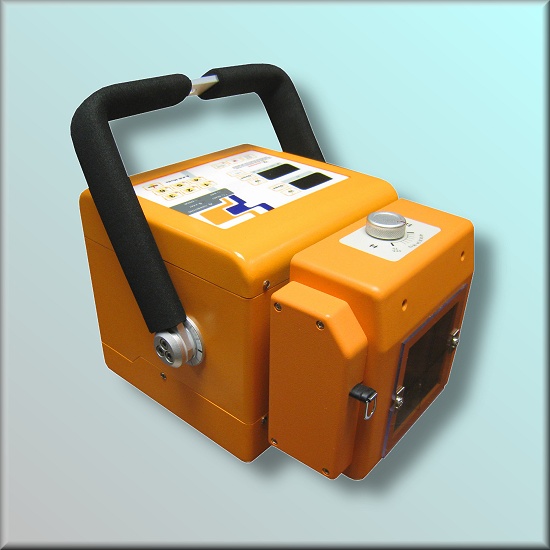

       Ultra 10060HF Portable X-Ray Unit.


Stock #
Description
Your Price
10060HF
100kVp/60mA
Portable X-Ray System
$9,576.00


Diagnostic Imaging Systems!
Introducing the NEW Advanced featured "ULTRA 10060HF", the most powerful, DR Ready, 100kV ultralight, high frequency, compact sized portable x-ray system designed specifically for small and large animals.

"ULTRA 10060HF" is the most compact sized, lightest, highest powered, 100kV ultra light, highly efficient portable designed especially for the VETERINARY practitioner. It features 40-100kV, in 1kV increments and with its ripple-free HFG system, you can shoot up to 100kV / 60mA with full logic control operation. It also provides high resolution imaging at lower dosages.

FEATURES:
Ultra Lite: Only 25 lbs!
Ultra Fast: Routine radiographs in less than .05 seconds.
Ultra Powerful: 100kV/60mA
Ultra Detail: 1kV steps, 100mAs / 40-100kV
Ultra Accurate: Two stage dynamic, automatic line compensation.
Ultra High Frequency: 2 times the power as other 100 kVp units.
Ultra Programmable: Technique memory settings.
Ultra Easy: Soft Touch Controls with Digital displays
Ultra Collimator: Calibrated cassette size indicator dials.
Ultra Compact Size: 13"L x 9.5"W x 8"H.

SPECIFICATIONS:
Weight: 25 lbs.
Cabinet Design: One Piece with external collimator.
Output Power: 3.2 KW.
Generator: High Frequency, 70kHz inverter type.
Digital Display and Technique Selection: Kv, mAs, time.
kVp minimum to maximum with step selection: 40-100kV, 1 kV steps.
mAs minimum to maximum with 25 step selection: 0.4 to 200mAs.
Time minimum to maximum: 0.011 to 8 seconds.
mA Maximum: 40 mA based on kVp selected.
Collimator: Cassette size indicator dials, lamp timer on during prep., off after exposure.
Laser Pointer: Dual Integrated Laser Pointers.
Line Power Supply Compensation: Dynamic two stage, automatic line voltage and current.
Line Power Supply Requirements: 220 Volts.
X-Ray Tube Manufacturer: Toshiba Model D-125.
Focal Spot Size: 1.2mm.
Cooling Speed: 350HU/sec.
X-Ray Beam Aluminum Filtration in mm: 1.00mm Al equivalent @ 90kV.
Exposure Switch Two Stage Prep. Exposure: Hand Switch (Optional Foot Switch)
Exposure Cord length in feet: 12 ft.
Tape Measure: Heavy Duty.

Complete with Carrying Case, H.D. Tape Measure, Manual, and Technique Charts.




Need a table, or Stand for this portable??
