Pacific Northwest X-Ray Inc.

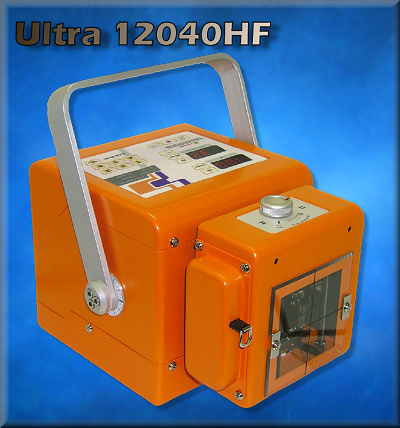

       The Ultra 12040HF Portable X-Ray Unit.


Diagnostic Imaging Systems!
DR Ready and Wireless PC Controlled

Introducing the NEW Advanced featured "ULTRA 12040HF", the most powerful, 120kV ultralight, high frequency, compact sized portable, designed specifically for small and large animals in the field or the office. The worlds first DR ready unit with optional wireless PC control of all functions including prep, exposure, kV, time, mAs, columnator light, laser pointers plus DR system wireless control.

Small Animal To Large Animal

ULTRA 12040HF - Your Quality Veterinarian Wireless Radiology Solution!

Features and benefits
  • DR (Digital) Ready!
  • Ultra-Light!
  • Ultra-Compact.
  • Ultra-Accurate.
  • Wireless.
  • Ultra-Easy.
  • Ultra-Fast.
  • Ultra-Detail.

  • The New DIS Ultra-Stand positioning aid with versatile, convenient & compact design, provides quick easy mobilization in the field or at your facility. With the new Ultra-Stand there's no need to hand hold your x-ray unit. This helps to eliminate scatter radiation exposure and reduces motion for better film detail.



    The first integrated mobile veterinary examination table allowing use of any portable x-ray unit. Provides x-ray capabilities in exam room, and can be wheeled directly into surgery, with ease and accurate positioning. Less patient movement helps ensure consistent, quality results.

    NEWEST Advance Featured High Frequency Unit "ULTRA 12040HF" #1 Choice for Veterinary Mixed Animal

    "ULTRA 12040HF" is the most compact sized, lightest, highest powered, 120kV ultra light, highly efficient portable designed especially for the VETERINARY practitioner. It features 40-120kV, in 1kV increments and with its ripple-free HFG system, you can shoot up to 120kV, 40mA with full logic control operation. It also provides high resolution imaging at lower dosages.

    Ultra Lite: Only 25 lbs!
    Ultra Fast: Routine radiographs in less than .05 seconds.
    Ultra Powerful: 120kV/40mA
    Ultra Detail: 1kV steps, 100mAs / 40-120kV
    Ultra Accurate: Two stage dynamic, automatic line compensation.
    Ultra High Frequency: 2 times the power as other 100 kVp units.
    Ultra Programmable: Technique memory settings.
    Ultra Easy: Soft Touch Controls with Digital displays
    Ultra Collimator: Calibrated cassette size indicator dials.
    Ultra Compact Size: 13"L x 9.5"W x 8"H.

    "Designed To Handle The Extremes"

    SPECIFICATIONS:
    Weight in Pounds: 25 lbs.






    Cabinet Design: One Piece with external collimator.
    Output Power in KW: 2.8 KW.
    Generator: High Frequency, 70kHz inverter type.
    Digital Display and Technique Selection: Kv, mAs, time.
    kVp minimum to maximum with step selection: 40-120kV, 1 kV step.
    mAs minimum to maximum with 25 step selection: 0.4 to 100mAs.
    Time minimum to maximum: 0.011 to 8 seconds.
    mA Maximum: 40 mA based on kVp selected.
    Collimator: Cassette size indicator dials, lamp timer on during prep., off after exposure.
    Laser Pointer: Dual Integrated Laser Pointers.
    Line Power Supply Compensation: Dynamic two stage, automatic line voltage and current.
    Line Power Supply Requirements: 120 Volts.
    X-Ray Tube Manufacturer: Toshiba Model D-125.
    Focal Spot: 1.2mm Heating Unit: 50 kHU.
    Cooling Speed: 350HU/sec. Target Angle: 16°.
    X-Ray Beam Aluminum Filtration in mm: 1mm Al equivalent @ 90kV.
    Exposure Switch Two Stage Prep. Exposure: Hand Switch (Optional Foot Switch).
    Exposure Cord length in feet: 12 ft. Power Cord length in feet: 20 ft.
    Tape Measure: Heavy Duty.

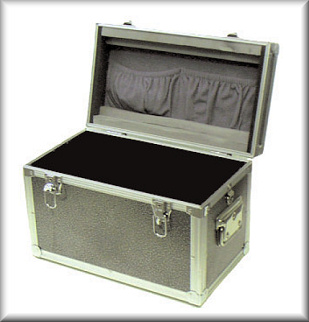

    Carry Case Size: 12"H x 13"W x 17"L.

    Comes complete with: Carrying Case, H.D. Tape Measure, Manual, and Technique Charts. Warranty is One Year, Parts and Labor. Customer must pay shipment to return the unit to the repair depot only.


    Stock #
    Description
    Your Price
    12040HF
    120kV/30mA
    Portable X-Ray System
    $9,494.00




    Need a table, or Stand for this portable??
