Pacific Northwest X-Ray Inc.

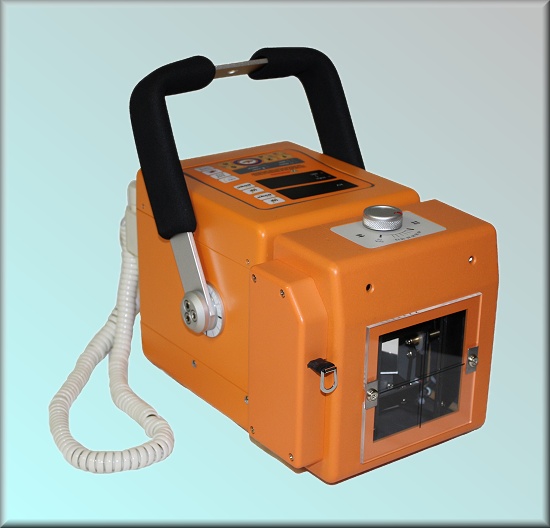

       Ultra 9030HF Portable X-Ray System.


Diagnostic Imaging Systems!
Introducing the world's most powerful, most advanced, lightest weight and most compact 30mA/90kV equine/veterinary x-ray system!

Innovatively designed, Ultra-Light, high-frequency portable x-ray unit features automated control systems which deal with weak power supply conditions automatically! Producing consistent quality films in the field or office, even while operating on 150' extension cord. This units 80kV, 30mA output produces more x-ray MR output than ordinary lightweights.

FEATURES:
Ultra Lite: Only 16 lbs!
Ultra Fast: Stifles in less than .05 seconds.
Ultra Powerful: 90kV/30mA
Ultra Detail: 1kV steps @ 40-90kV
Ultra Accurate: Automatic line current compensation.
Ultra High Frequency: Twice as powerful as other units.
Ultra Programmable: Technique memory settings.
Ultra Easy: Soft Touch Controls with Digital displays.
Ultra Collimator: Calibrated cassette size indicator dials.
Ultra Compact Size: 10.5"L x 6"W x 6.75"H.



Stock #
Description
Your Price
9030HF
30ma/90kV Portable X-Ray System
$8,736.00


SPECIFICATIONS:
Weight Class: Ultra Light Weight.
Weight in Pounds: 16 lbs.
Cabinet Design: Two Piece.
Output Power in kW: 1.5 kW.
Generator: High Frequency Inverter Type.
Digital Display & Technique Selection: Kv, mAs.
kVp minimum to maximum with step selection: 40-90kV, 1 kV step.
mAs minimum to maximum with 26 step selection: .32 to 30mAs.
Time minimum to maximum: 0.02 to 3.0 seconds in 23 steps.
Maximum mA: 30mA.
Collimator: Cassette size indicator dials, lamp timer on during prep., off upon exposure.

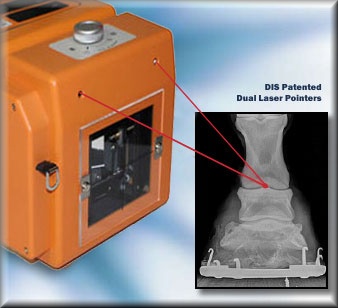

Laser Pointer: Dual Integrated Laser Pointers.
Line Power Supply Compensation: Dynamic two stage, automatic line voltage and current.
Line Power Supply Requirements: 120vAC or 240vAC.
X-Ray Tube: Heavy Duty, Fixed Anode.
Focal Spot Size: 1.2mm.
Anode Cooling Speed: 300HU/sec.
X-Ray Beam Aluminum Filtration (HVL) in mm: 2.5mm Al equivalent @ 80kV
Anode Heat Storage: 70kHU
Target Angle: 16°
Exposure Switch Two Stage Prep. Exposure: Hand Switch (Optional Foot Switch)
Exposure Cord length in feet: 12 ft.
Tape Measure: Heavy Duty.
Power Cord length in feet: 20 ft.
Carry Case Size: 10"H x 12"W x 18.5"L

Comes complete with Carrying Case, H.D. Tape Measure, Manual, and Technique Charts.
