       Maxant Thrifty-Lume.


Maxant Technologies! The THRIFTY-LUME by....MAXANT

A simple solution for your basic viewing needs.

  • Slim, streamlined body...sturdy steel construction.
  • Flexi-Grip Film Holding System.
  • Standard twin stick lamp light source.

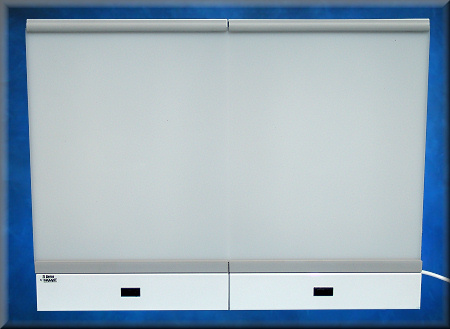

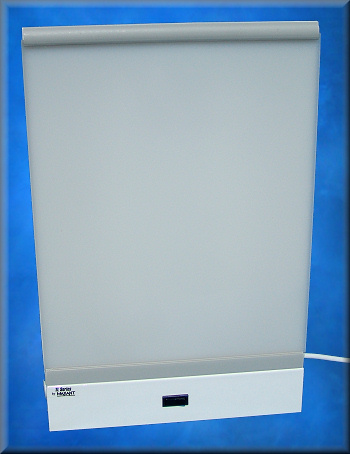

  • One and two-panel surface mount configurations.
  • High quality finish.


  • Features and Benefits:

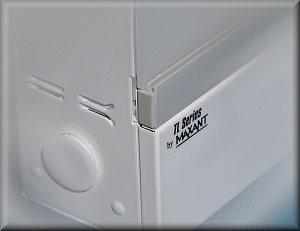

    Slim Steel Body Construction
  • Slim 3-3/8" depth is visually unobtrusive and cosmetically clean and simple.
  • High quality, strong welded steel construction is resistant to damage.


  • Two Lamp Light Source
  • Lamps: Two #F15T8/D or equivalent.
  • Emits approximately 2000 NITS of luminescence. (Results may vary due to local environment).


  • Available in Basic Configuratons
  • Available in both one and two-panel surface mount configurations.

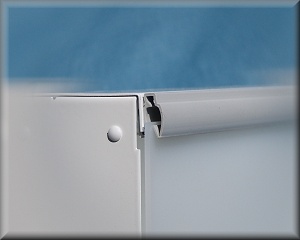

  • Flexi-Grip Film Holding System
  • Engineered for maintenance free reliability and durablity.
  • Handles all film thicknesses, wet or dry.
  • Requires no field adjustment.




  • High Gloss White Finish
  • Standard hospital white is compatible with most medical facility decors.
  • High gloss finish projects a hospital quality appearance.
  • Chip and wear resistant.
  • Sanitary, easy to clean surface resists harsh cleaning materials frequently used in medical facilities.


  • Translucent Viewing Panel
  • Shatterproof translucent panel provides consistantly even light diffusion.
  • Translucent panel is easily removed for cleaning and maintenance (eg: changing lamps)


  • Continuous Bottom Film Ledge
  • Allows for reading of multiple film sizes on a viewing area.


  • Electrical Specifications:
  • U.L. Listed, C.S.A. Approval Pending to meet safety specifications required in the U.S. and Canada.
  • Each viewing area is 14" x 17" and contains two 15 watt daylight florescent lamps which are controlled by two ballasts. The ballasts are U.L. Listed and C.S.A. Approved and use a manual pre-heat starting switch.
  • Each viewing panel: 110-124 Volt - 60 Hz - 0.7 amps per panel.
  • Grounded chassis with 3 wire, 6 ft. cord and NEMA 5-15, 2 pole, 3 wire ground plug.
  • No hazardous electrical parts are exposed when the diffusing panel is removed for cleaning or lamp replacement.

  • For those who are interested in portability, Maxant does offer a Handle & Feet option.








    Stock #
    Viewbox
    Configuration
    Mounting Type
    (Surface or Recessed)
    Length
    Overall Height
    Depth
    Shipping Weight
    Cut Sheet
    Your Price
    TLS-01
    Single Unit
    Surface
    14"
    21"
    3-1/8"
    16 lbs.
    $201.67
    TLS-02
    2 Bank Unit
    Surface
    28"
    21"
    3-1/8"
    30 lbs.
    $403.33
    TLS-03
    3 Bank Unit
    Surface
    42"
    21"
    3-1/8"
    call
    call
    $670.00
    TLS-04
    4 Bank Unit
    Surface
    56"
    21"
    3-1/8"
    call
    call
    $851.67
    TLR-01
    Single Unit
    Recessed
    14"
    21"
    call
    call
    call
    $300.00
    TLR-02
    2 Bank Unit
    Recessed
    28"
    21"
    call
    call
    call
    $501.67
    TLR-03
    3 Bank Unit
    Recessed
    42"
    21"
    call
    call
    call
    $831.67
    TLR-04
    4 Bank Unit
    Recessed
    56"
    21"
    call
    call
    call
    $1,025.00
    HF
    Optional Handles and Feet
    N/A
    N/A
    N/A
    N/A
    N/A
    N/A
    $40.00
