Pacific Northwest X-Ray Inc.

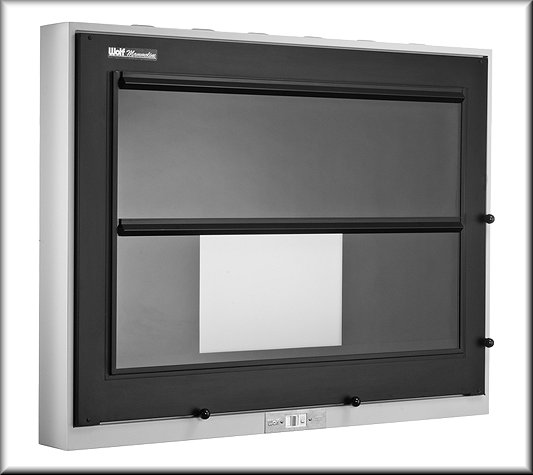

       Wolf Mammoline Mammography Illuminator.
Wolf! X-Ray Corporation
The Mammoline combines superior lighting technology with ACR mandated masking shutters for optimum film viewing.

At top intensity the Mammoline produces over 7,600 Candela per square meter of illumination! You can also adjust the light output down to 280 Candela via a built in dimmer (the ACR recommends a minimum of 3,400 Candela per square meter per viewing area).

Wolf's unique reflector design disperses light evenly to eliminate "hot spots" found on other viewers. The ballasts are state of the art energy efficient solid state units for flicker free instant on lighting. In addition, the Mammoline has a unique venting design that dissipates heat build-up. The Mammoline's shutters are completely light proof and glide easily on horizontal and vertical tracks. Film grips are gravity roller type for easy film mounting.

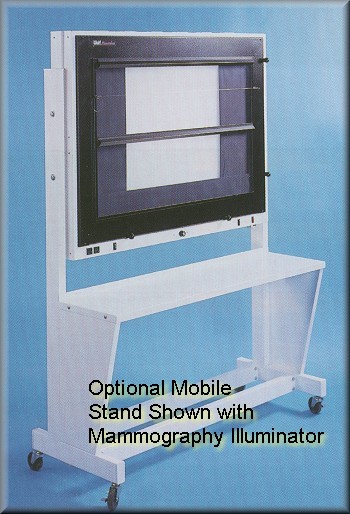

The Mammoline is easily wall mounted by means of Wolf's unique E-"Z" Bar mounting system. An optional mobile stand is also available (Shown here). The Mammoline cabinet is 48" long, 36" high, and 5" deep. The viewing area is two tiers measuring 38" x 11" each. The finish is baked-on enamel. The approximate shipping weight for wall hung units is 146 lbs.







Stock #
Description
Your Price
28601
Illuminator
$5,052.15
21504MS-28
Stand
$989.46

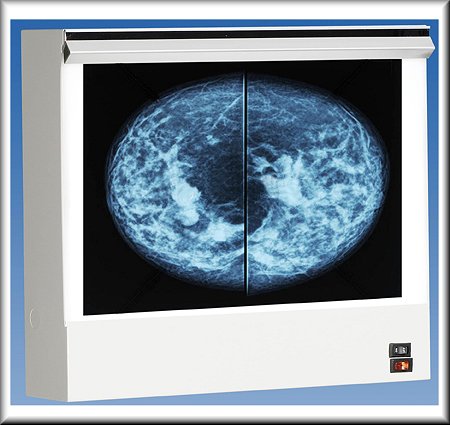

       Wolf VuPlus Mammography Viewer.
Wolf! X-Ray Corporation
VuPLUS MAMMOGRAPHY VIEWER

The VuPlus is a mammography viewer with all the special features mammography imaging requires. The viewing area is custom sized to 29 x 48-1/2cm to minimize light spillover and the unit has two light intensities.

The VuPlus features a white baked enamel finish, a gravity roller grip film retainer, five fluorescent lamps (3,426 candela per square meter) per viewing area, a rocker switch and an 8' line cord with 3 prong plug.
Approximate shipping weight (single unit) is 19 lbs.





Stock #
Dimensions
Your Price
28001
Single Unit 16-3/8"H x 19-1/8"W x 4"D
$386.85
28002
Double Unit 16-3/8"H x 39-1/4"W x 4"D
$716.38
